E1012-305 Military Security Bulletproof Ceramic Plates

Name: E1012305 Military Security Bulletproof Ceramic Plates
Brand: High Broad or OEM
Price: 1 USD

Quality E1012-305 Military Security Bulletproof Ceramic Plates for sale

Brand Name : High Broad or OEM

Model Number : Silicon Carbide

Certification : ISO

Place of Origin : China

MOQ : 10 kgs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100mt per month

Delivery Time : 10 mt: 14 days

Packaging Details : in carton

Product name : E1012-305 Military Security Bulletproof Plate

Grade : NIJ III, NIJ IV,Bulletproof Ceramic Plates/SIC Bulletproof Ceramic Plates

Application : Bulletproof, ballastic

Shape : squre,hexongal,rectangular, round Bulletproof Sic

Content : Silicon carbide

other name : bulletproof ceramic tiles

Material : SIC silicon carbide bulletproof plate

Contact Now

E1012-305 Military Security Bulletproof Plates , Bulletproof Ceramic Plates

Bulletproof Sic /B4C Widely used in heavy armored protection in planes/vehicles/ships, and high-class physical protection.

Material Comparation Chart:

Item	Al2O3	SiC	B4C
Density	3.5g/cm3	3.1g/cm3	2.4-2.65g/cm3
Hardness	HV1650	HV2750	HV3300
Flexural strength	290 Mpa	380 Mpa	400-650 Mpa
Compressive strength	850 Mpa	3970 Mpa	4100 Mpa
Fracture toughness	4.8 Mpa.m1/2	4.0 Mpa.m1/2	4.5-7.0 Mpa.m1/2
Thermal Conductivity	20 m0k	120m0k	29 m0k

Specifications:

Density: 2.40-2.65 g/cm3

Elastic modulus: 510 Gpa

Knoop Hardness: 3300

Flexural strength: 400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness: 4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

E1012-305 Military Security Bulletproof Plate

Office:

Workshop & Warehouse & Lab:

Other Products you may have interests:

Boron carbide ballistics tiles

Product Tags:

silicon carbide tiles

bulletproof ceramic plates

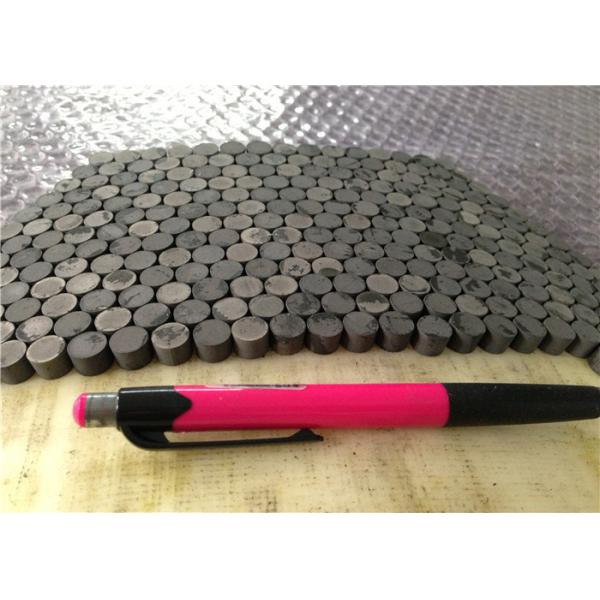

E1012-305 Military Security Bulletproof Ceramic Plates Images
